Zoomlion Truck Mounted Concrete Pump/Dis. V Assy.001690213a0000000/Bearing Pedestal

Name: Zoomlion Truck Mounted Concrete PumpDis V Assy001690213a0000000Bearing Pedestal
Brand: Changsha Tongchuang Mechanical
Price: 60 USD

Buy cheap Zoomlion Truck Mounted Concrete Pump/Dis. V Assy.001690213a0000000/Bearing Pedestal product

Brand Name : Changsha Tongchuang Mechanical

Model Number : 001690202A0000001/Bearing pedestal

Place of Origin : Changsha, Hunan, China

MOQ : 1piece

Price : $60-78/piece

Supply Ability : 100pcs/month

Delivery Time : 1 days

Packaging Details : According to export standards

Payment Terms : L/C, T/T

material quality : steel

Quality Assurance : In 1 year

weight : 34kg

Adaptation manufacturer : Zoomlion

installation site : hopper

Packaging : Standard Export Carton

Brand : OEM Or ODM

Contact Now

Zoomlion Truck-Mounted Concrete Pump/Dis. V Assy.001690213a0000000/Bearing Pedestal

Specification:

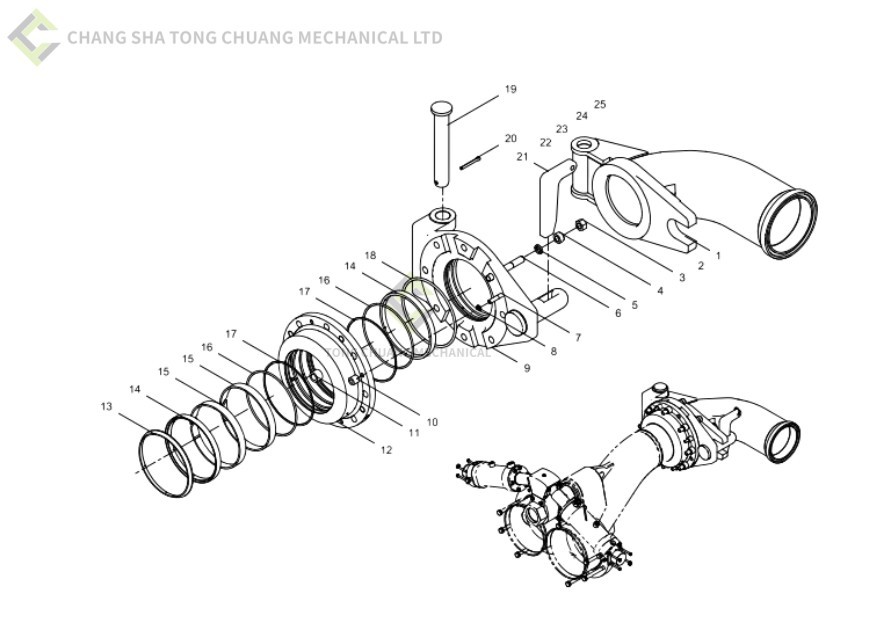

Dis. V. assy. 001690213A0000000 1/4
POS.	CODE	STANDARD NO.	DESCRIPTION	SPEC	QTY
1	001690213A0200000		Outlet bend		1
2	1109900513		Spring buckle		2
3	000190201A0000019	0160402F0030	Screw cover		8
4	1040200097	GB/T6170-2000	Nut	M20-8	8
5	1040300038	GB/T93-1987	Washer	20	8
6	1040000505	GB/T899-1988	Double-screw bolt	AYM20-M20×120-8.8	8
7	1040100259	GB/T70.1-2000	Screw	M12×55-8.8	4
8	1040300054	GB/T93-1987	Washer	12	7
9	001690202A0100000	0167802A1000	Outlet		1
10	001690201A0000012	0167502A0019	Gasket set 2		4
11	001690201A0000001	0167502A0002	Gasket set		8
12	001690202A0000001	0167802A0001	Bearing pedestal		1
13	000190201A0000007	0010202A0001	J-type dust ring	d210	1
14	000190201A0000008	0010202A0002	Yx-Seal ring	d210	2
15	000190201A0000009	0010202A0003	Beairng	TMC nylon	2
16	1081000456	GB/T3452.1-1992	O-ring	212×5.3	2
17	000190201A0000010	0010202A0004	Retalner ring	219.3×210×2	2
18	001690207A0000001		O-ring	2247	1
19	001690201A0000010	0167502A0015	Pin		1
20	1040500217	GB/T91-2000	Pin	8×63	1
21	001690201A0000011	0167502A0016	Inclined block		1
22	001690201A0000013		Chain	5.0×18.8×28.2-300	1
23	001605103A0700004	0161583C0006	Pin		1
24	1999900000		Key ring		1
25	001605103A0703000	0160183C0015	Wire rope sleeve		1

Zoomlion Truck Mounted Concrete Pump/Dis. V Assy.001690213a0000000/Bearing Pedestal

Description:

Zoomlion utilizes bearing pedestals for the hopper position of their concrete pumps, which come in three different models with corresponding part codes: 000190201A0000018, 001690202A0000001, and 000190205A0000002.

Product Tags:

Concrete Pump Bearing Pedestal

Zoomlion Concrete Pump Bearing Pedestal
