Sany Concrete Pump Parts Double Gear Pump Single In And Double Out B220301000403

Product Categories

Changsha Tongchuang Mechanical Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Sany Concrete Pump Parts Double Gear Pump Single In And Double Out B220301000403
Brand: CASAPPA
Price: 1 USD

Brand Name : CASAPPA

Model Number : KP30.34-A8K9-LMD/MB-KSL/GS/30.22

Place of Origin : Chang sha China

MOQ : 1piece

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 100pcs/month

Delivery Time : 1-2days

Packaging Details : Export standards

Color : Black

weight : 24KG

SANY code : B220301000403

Adapted models : SANY concrete pump

part name : Double gear pump

Contact Now

Sany Concrete Pump Parts Double Gear Pump Single In And Double Out B220301000403

1	B220301000165	Arm rack oil pump A7VO55LRDS/63L-NZB01-S	1

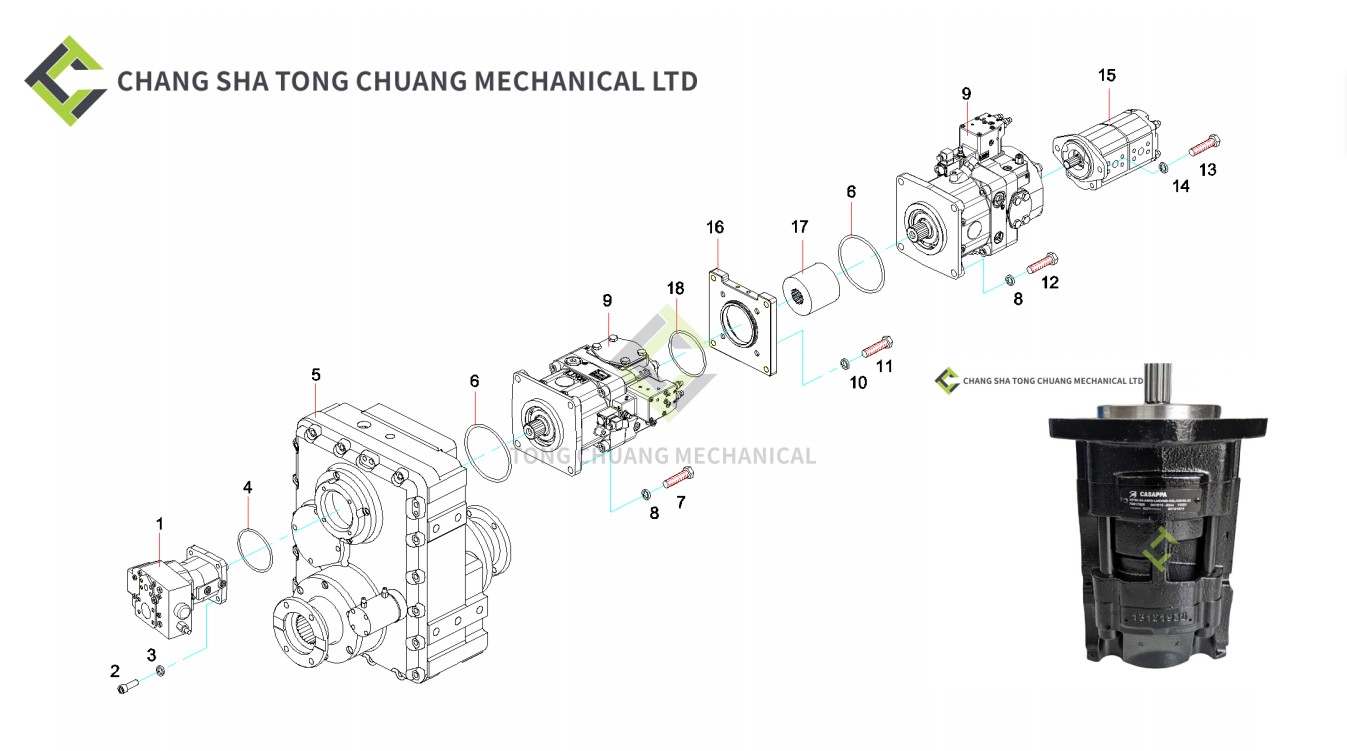

Detailed list of spare parts of transfer box (PTO) and oil pump assembly
Number	Code	part name	Quantity
2	A210204000226	Nut bolt M12×40GB70.1 12.9	4
3	A210401000002	Washer 12GB93	4
4	A210608000320	O ring 125×3.55GB3452.1	1
5	10234443	Transfer case/PTO	1
6	A210609000015	O ring 165×3.55GB3452.1	2
7	A210110000078	Screw M20×65GB5783	4
8	A210401000006	Washer 20GB93	8
9	B220304000083	Main oil pump A11VLO190LRDU2	2
10	A210401000004	Washer 16GB93	4
11	A210204000195	Nut bolt M16×40GB70.1 12.9	4
12	A210111000233	Screw M20×55GB5783	4
13	A210111000101	Screw	2
14	A210405000001	Washer 12GB97.1	2
15	B220301000403	Double gear pump KP30.34-A8K9-LMD/MB-KSL/GS/30.22	1
16	10809191	190/190 connecting flange	1
17	B221700000011	spline housing	1
18	A210609000303	O ring	1
