4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

Brand Name : Domestic

Model Number : Z10W/Z12W/Z14W

Place of Origin : Changsha，Hunan，China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100pcs/month

Delivery Time : 7days

Packaging Details : Standard export package

Color : Green

Drive Mode. : 4*2

Weight : 2550kg

Battery : 8x6V/200Ah

Contact Now

Product Decription

The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

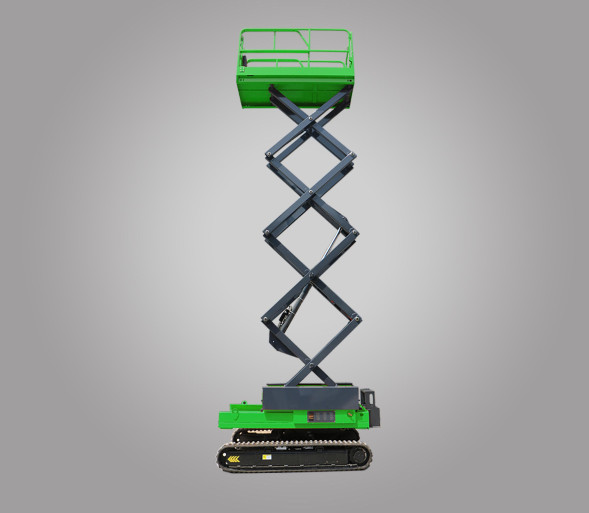

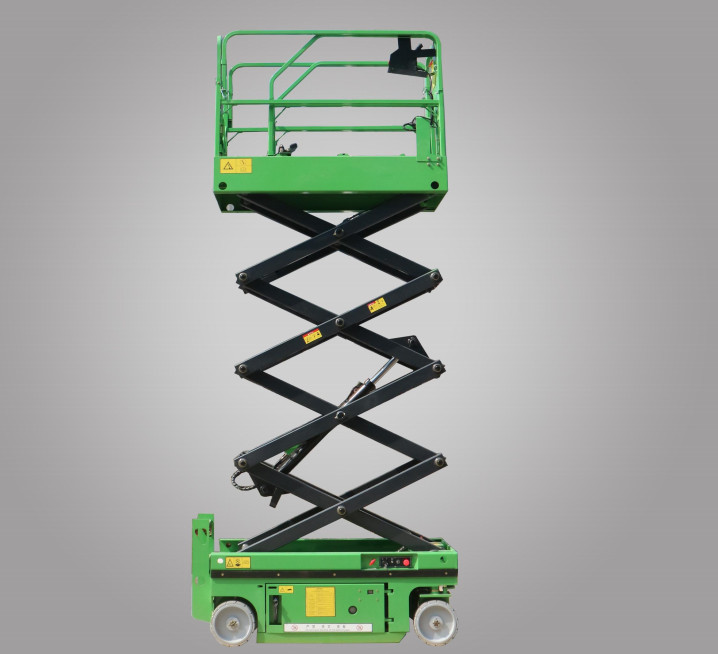

Product Picture

4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery
4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

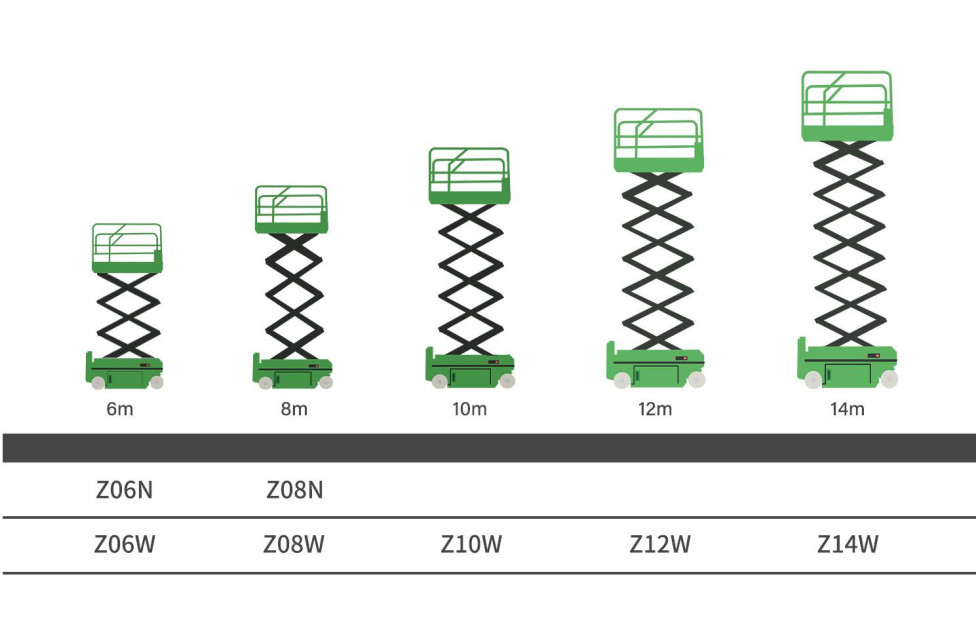

Model Z10W Z12W Z14W
Size
Maximum working height 11.8m 13.8m 15.8m
Maximum platform height 9.8m 11.8m 13.8m
Platform length 2.27m 2.27m 2.7m
Platform width 1.12m 1.12m 1.11m
Vehicle length 2.43m 2.43m 2.85m
vehicle width 1.21m 1.21m 1.31m
Overall height (unfolded national fence) 2.47m 2.6m 2.6m
Overall height (folded fence) 1.93m 2.06m 2.06m
platform extension size 0.9m 0.9m 0.9m
wheelbase 1.87m 1.87m 2.24m
Ground clearance (retracted/raised) 0.11m/0.02m 0.11m/0.02m 0.12m/0.02m
Performance
Maximum number of employees 2 2 2
Safe working load 450kg 320kg 230kg
Extended platform security workload 113kg 113kg 113kg
Driving height High altitude driving High altitude driving High altitude driving
Maximum climbing ability (retracted) 25% 25% 25%
Inner/outer turning radius 0/2.2m 0/2.2m 0/2.5m
Increase/decrease speed 3-5m/min 3-5m/min 3-5m/min
Drive mode 4×2 4×2 4x2
Tire type Solid seamless tire Solid seamless tire Solid seamless tire
Tire size φ381×127mm φ381×127mm φ381×127mm
Power
Battery 24V/200Ah 24V/200Ah 24V/240Ah
Charger 24V/36A 24V/36A 24V/36A
Hydralic System
Hydraulic oil capacity 20L 25L 30L
Weight
Total Weight 2550kg 2900kg 3570kg
4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery
